Earthing system design tool for low voltage installations (MS Excel Spreadsheet)

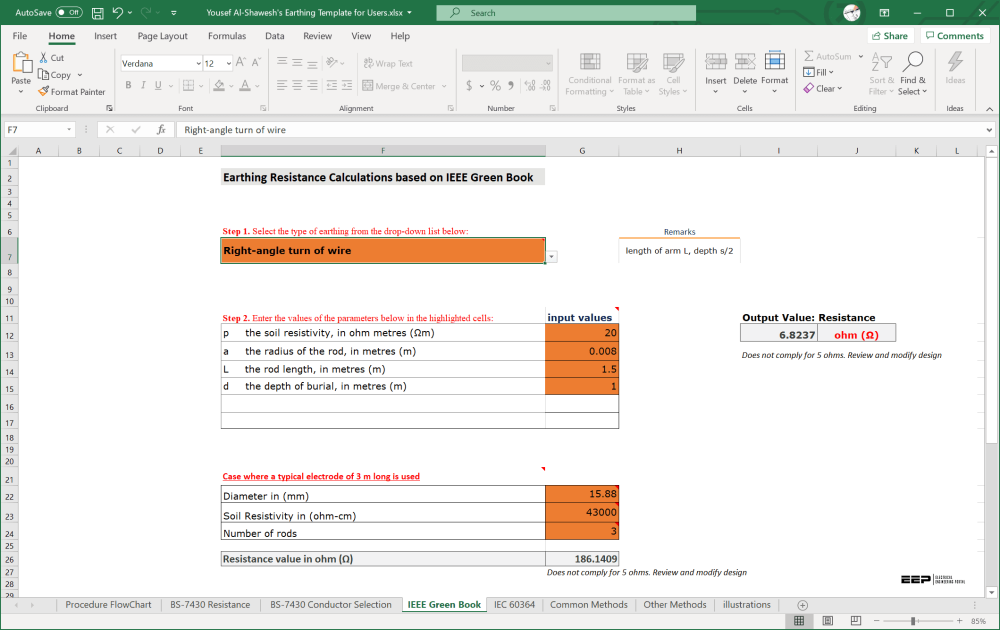

🎀 Save 15% on PRO Membership Plan With Coupon ZXR15. More Info | Browse Video Courses | Premium Membership WEEKLY DIGEST For advanced LV/MV/HV electrical engineers MS Excel Spreadsheet (XLSX) Earthing system design tool for low voltage installations This simple software tool with auto-mathematical functions was developed using Microsoft Excel. This template provides a technically acceptable computer simulation and yet a low-cost solution to the complex issue of effective design of earthing systems according to the standards BS-7430, IEEE-120 Green Book, and IEC-60364. Preliminary layout design is to be conducted after deciding the type of earthing electrode. The resistance of earthing must confirm to the minimum requirement. Further investigation of step and touch voltages is to be made to guarantee that they do not exceed the allowable limits. Download Excel Spreadsheet ETAP Power System Webinars ETAP technical webinars provide insights into the latest power systems topics, solutions, and industry applications. Sign up for our upcoming free live webinars and get access to recently broadcast on-demand sessions. Every webinar is broadcast two times, so you can join on the day & time most convenient for you. Register now Wired Articles & Guides Save 50% on courses with the Enterprise Membership! Premium Membership Inspection & Testing Prepare yourself for successful inspection and testing of MV metal-clad switchgear Motor Troubleshooting Troubleshooting the most typical winding problems of three phase electric motors Surge Protection, Low Voltage Practical tips for installing surge protection devices in low voltage panel Harmonic Distortion The magic I used to reduce harmonics in a plant (a real case study) Low Voltage Applications (PDF) Solutions For Power, Control, Safety and Energy Efficiency In Low Voltage Applications (PDF) Relay Protection (PDF) Operation, maintenance, and field test procedures for protective relays (PDF) Wired Video Courses Save 50% on courses with the Enterprise Membership! Premium Membership Relay Protection Course Circuit Breaker Failure Protection Course: Function, CB Scheme/Trip Matrix and Various Busbar Schemes Electrical Wiring Diagrams Basic Course In Reading, Understanding and Using Electrical Wiring Diagrams Electrical Engineering Portal PR Kralja Petra I 85, Nova Pazova Serbia You received this email because you signed up on our website or made a purchase from us. Unsubscribe
